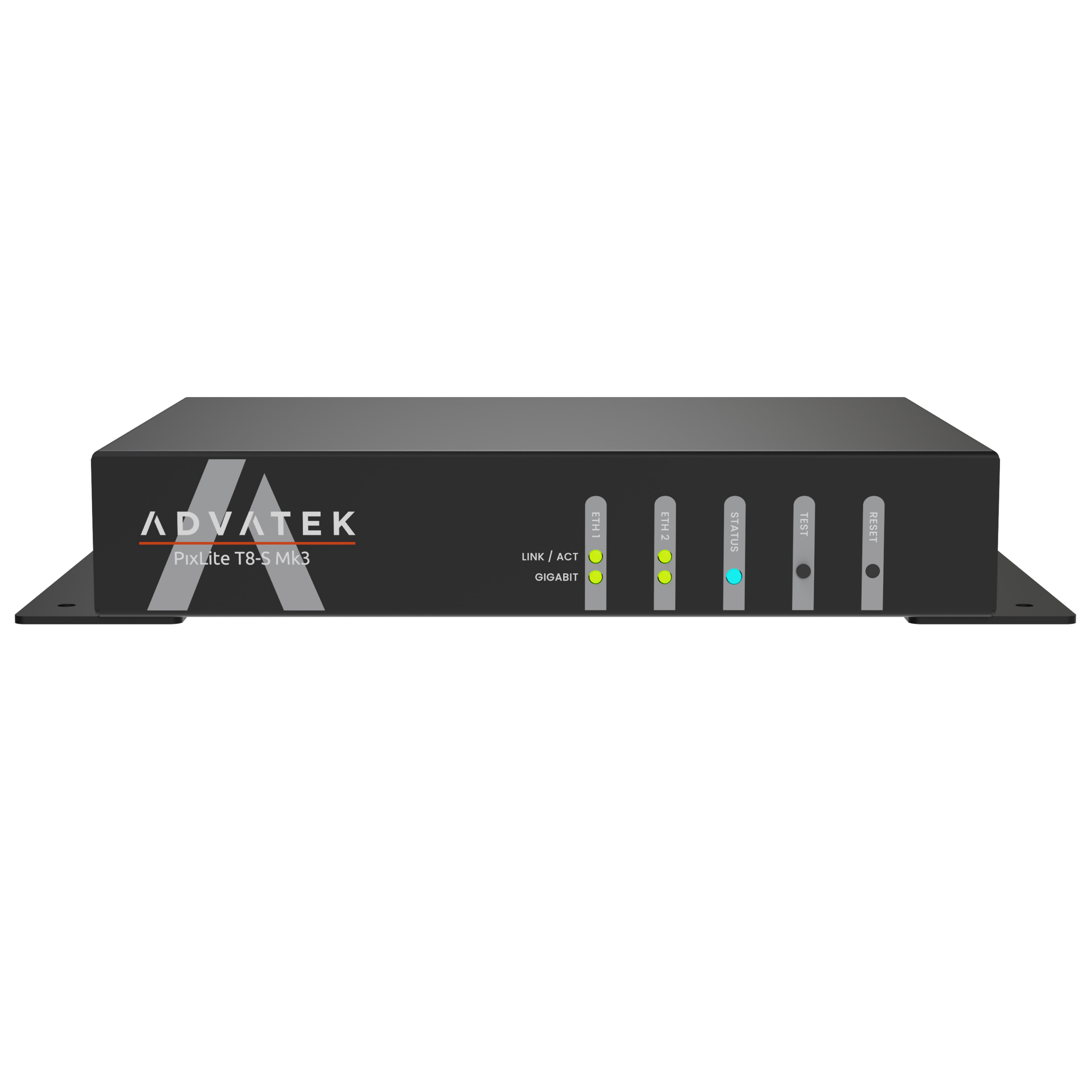

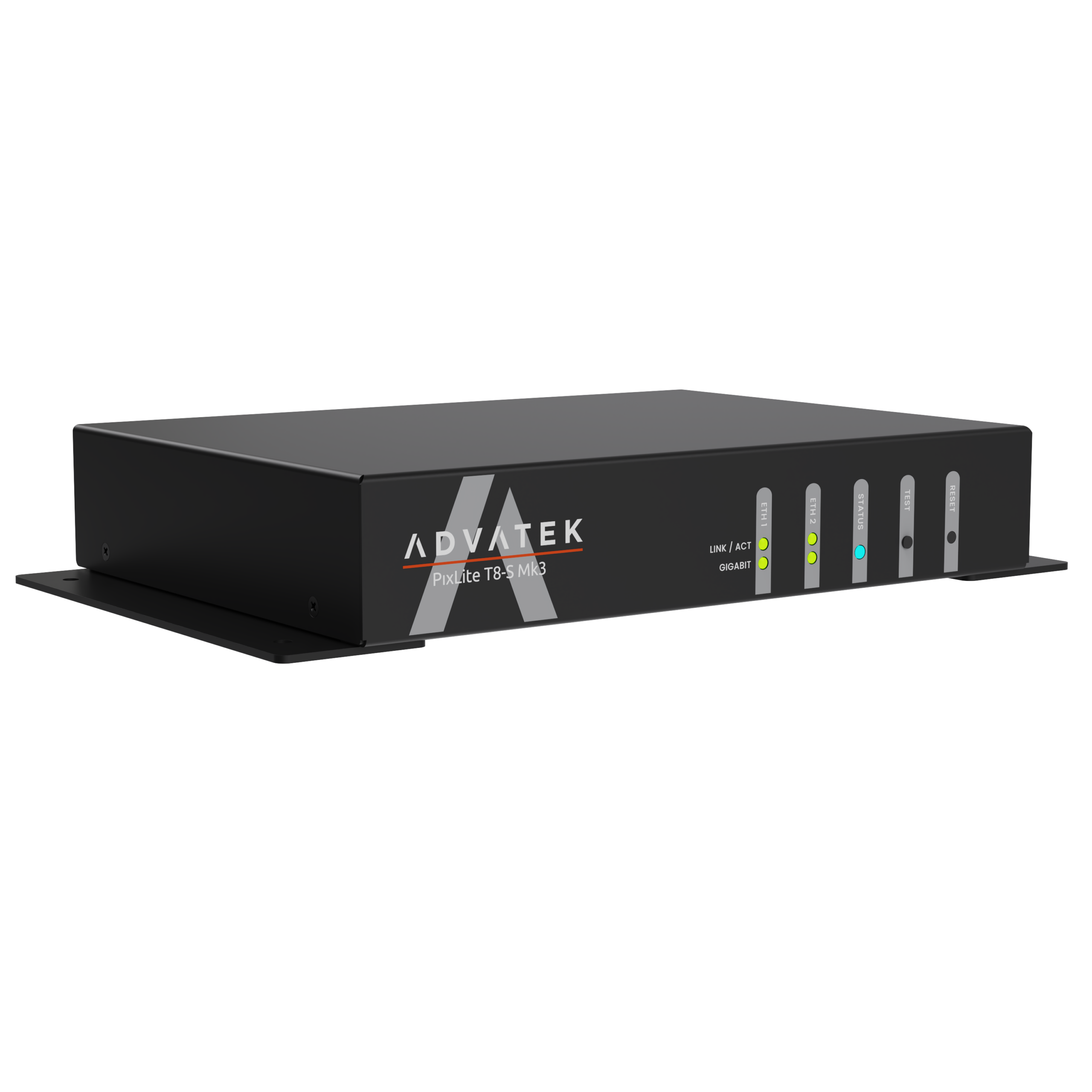

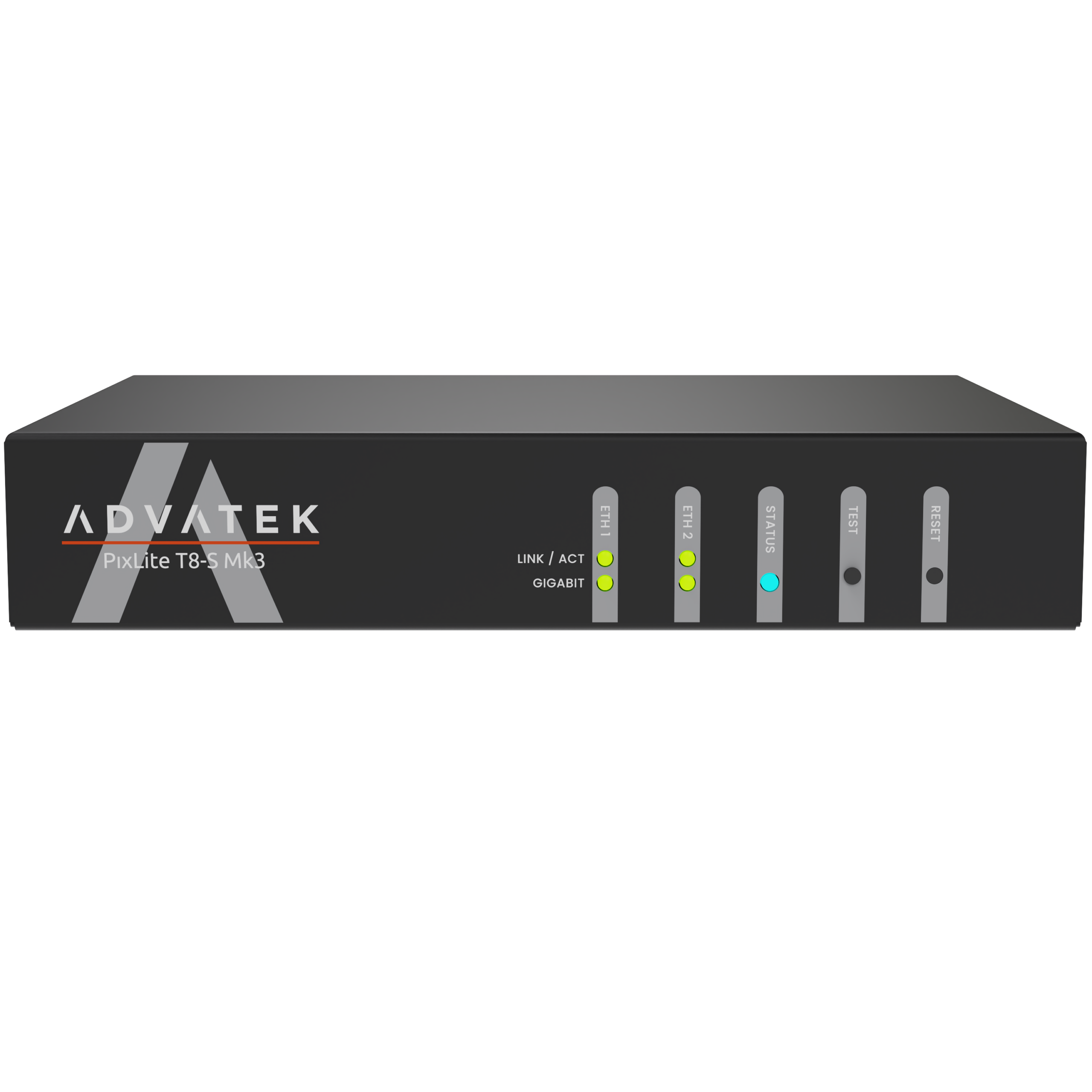

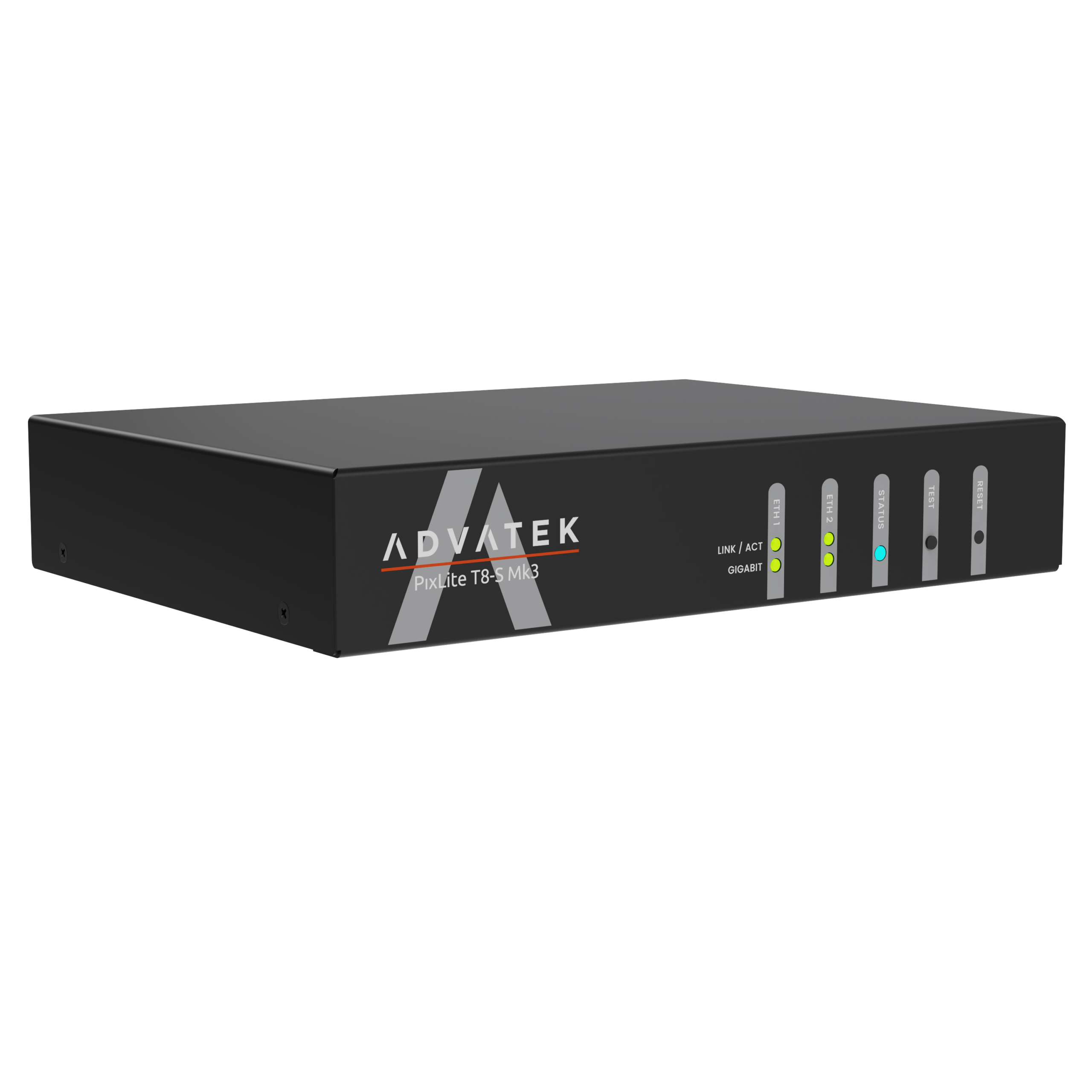

PixLite T8-S Mk3

The PixLite T8-S Mk3 is a powerful long-range pixel LED controller that replaces Advatek's bestselling T8-S Mk2 controller. This new generation controller was developed to meet overwhelming demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

The PixLite T8-S Mk3 transmits up to 96 universes of data to 8 PixLite R2/R4 receivers at distances of up to 300m – perfect for any professional installation where the LEDs will be separated by some distance.

Extreme flexibility

Expanded mode option for data only pixels offers twice as many digital outputs for faster refresh rates and greater flexibility.

Clocked pixel types have adjustable speeds, allowing you to optimize refresh rate with cable length limitations.

Advanced mapping options are available on every output:

Null pixels | Zig-zag | Reversing | Color order | Pixel grouping | Brightness

Super simple setup

Using our lightweight software for Windows or OSX, you can configure PixLite settings with a graphical interface. The Advatek Assistant software allows you to easily discover and manage your PixLite devices without having to become a networking guru.

Over 40+ supported chipsets

Advatek is an industry leader in supported pixel protocols. This controller supports all the common pixel protocols such as WS2801, WS2811/12/12B/13/15, APA102/104, TM180x, SK6812/6822, MY9221/9231 plus many more. Click for a full list of supported protocols.

Flexible network control

E1.31 supports unicast and multicast traffic and IGMP capability makes network setup for large sACN installations a breeze.

Supports Art-Net versions 1 to 4 for great compatibility. Art-Net 4 support allows your lighting software to automatically discover all universes for simplified setup.

Fault Protection

Features industrial strength fault protection on all data outputs resulting in higher reliability and less equipment failures over time. Short circuit and ESD protection as well as protection against common DC voltage levels provides peace of mind for commercial and industrial installations.

Your choice of receiver

All receivers aren’t created equal. Both the PixLite R2F-S and the PixLite R4D-S are compatible with the existing PixLite T8 Mk3.

Click for PixLite R2F-S or PixLite R4D-S.

Your choice of mounting brackets

The PixLite T8-S Mk3 is compatible with 3 different Advatek Bracket Kits.

  • Wall Bracket Mounting Kit

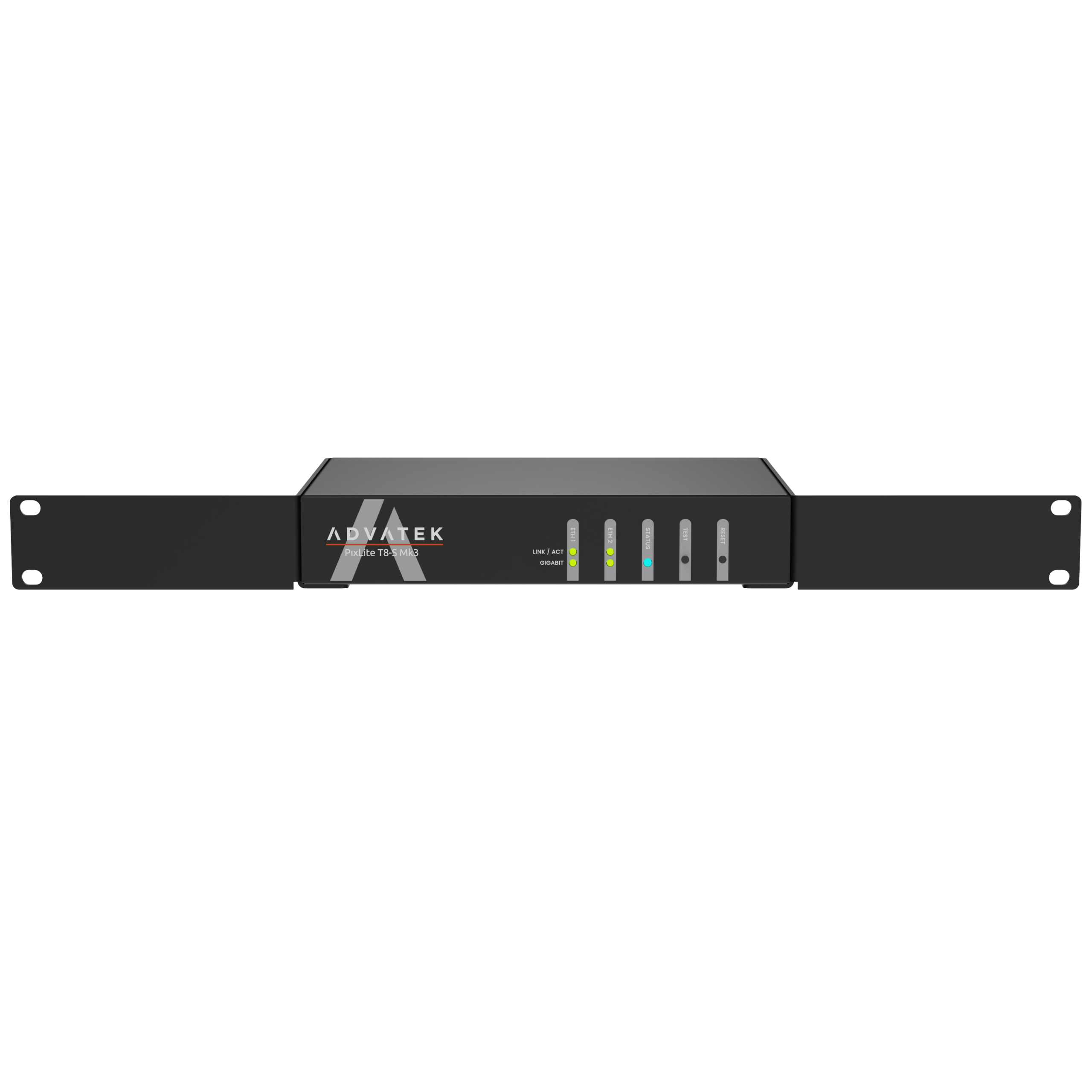

  • Single Rack Mounting Kit

  • Dual Rack Mounting Kit

SPECIFICATIONS



Power

  • Input Voltage: 100V-240V AC

  • Input Fuse: 1A M205

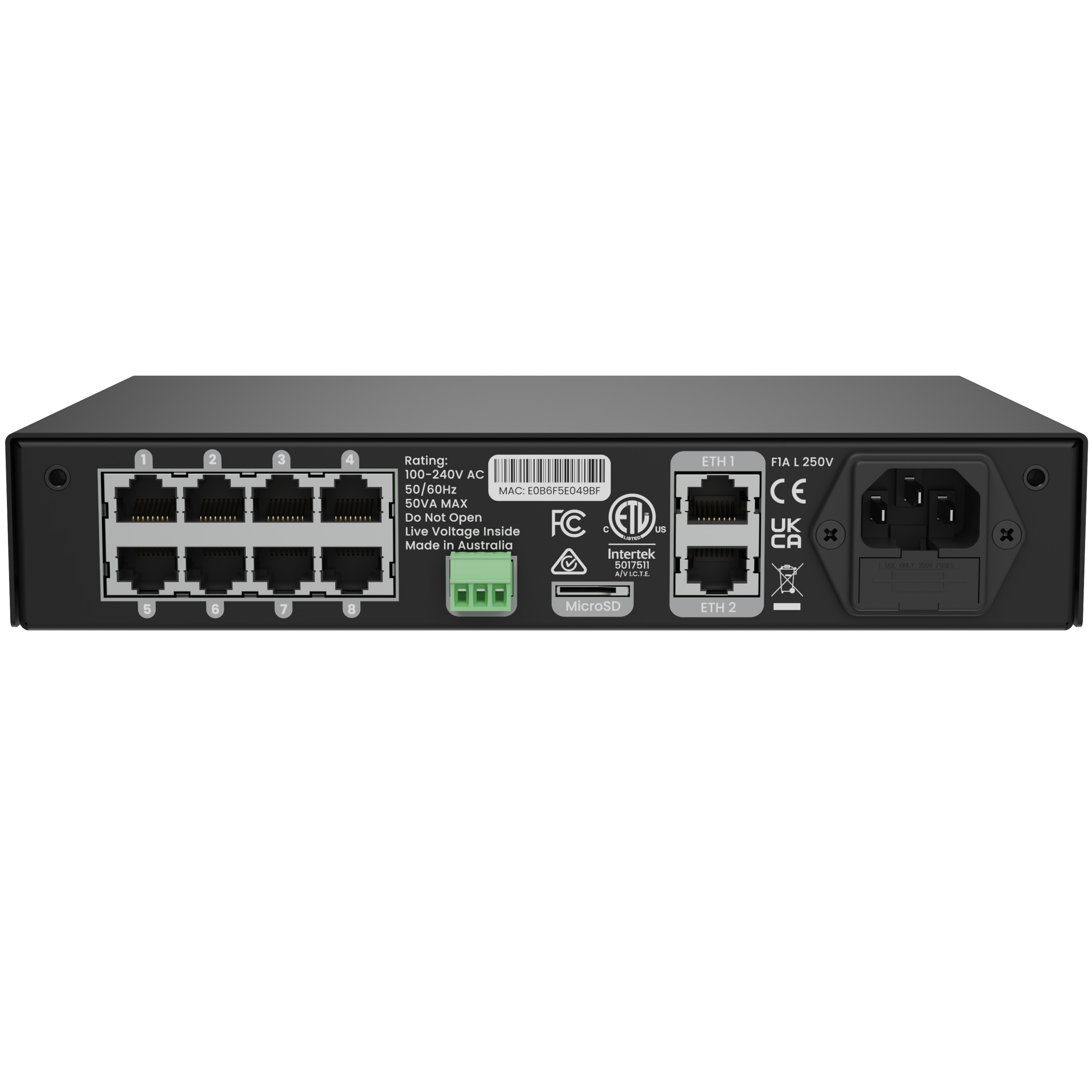

Physical

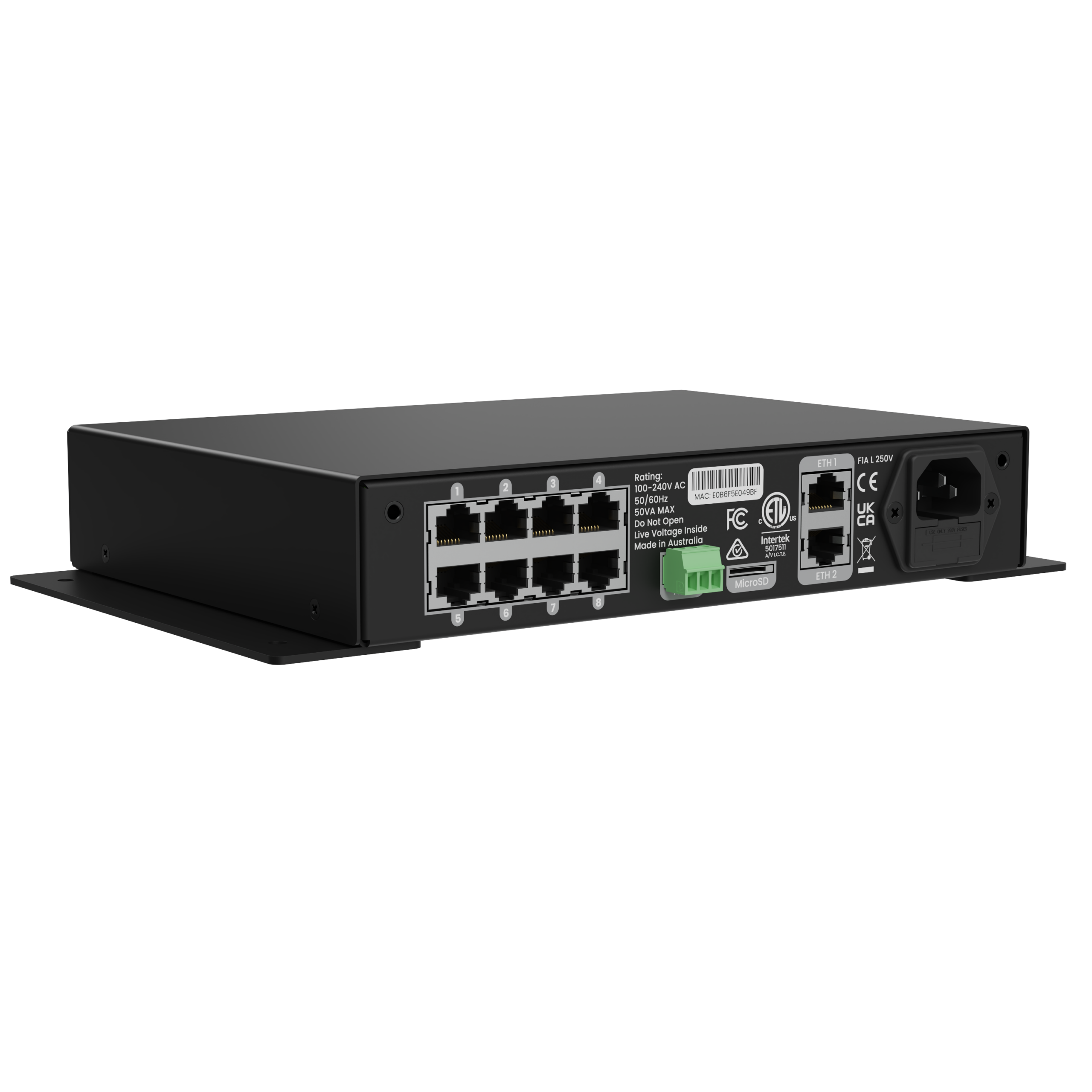

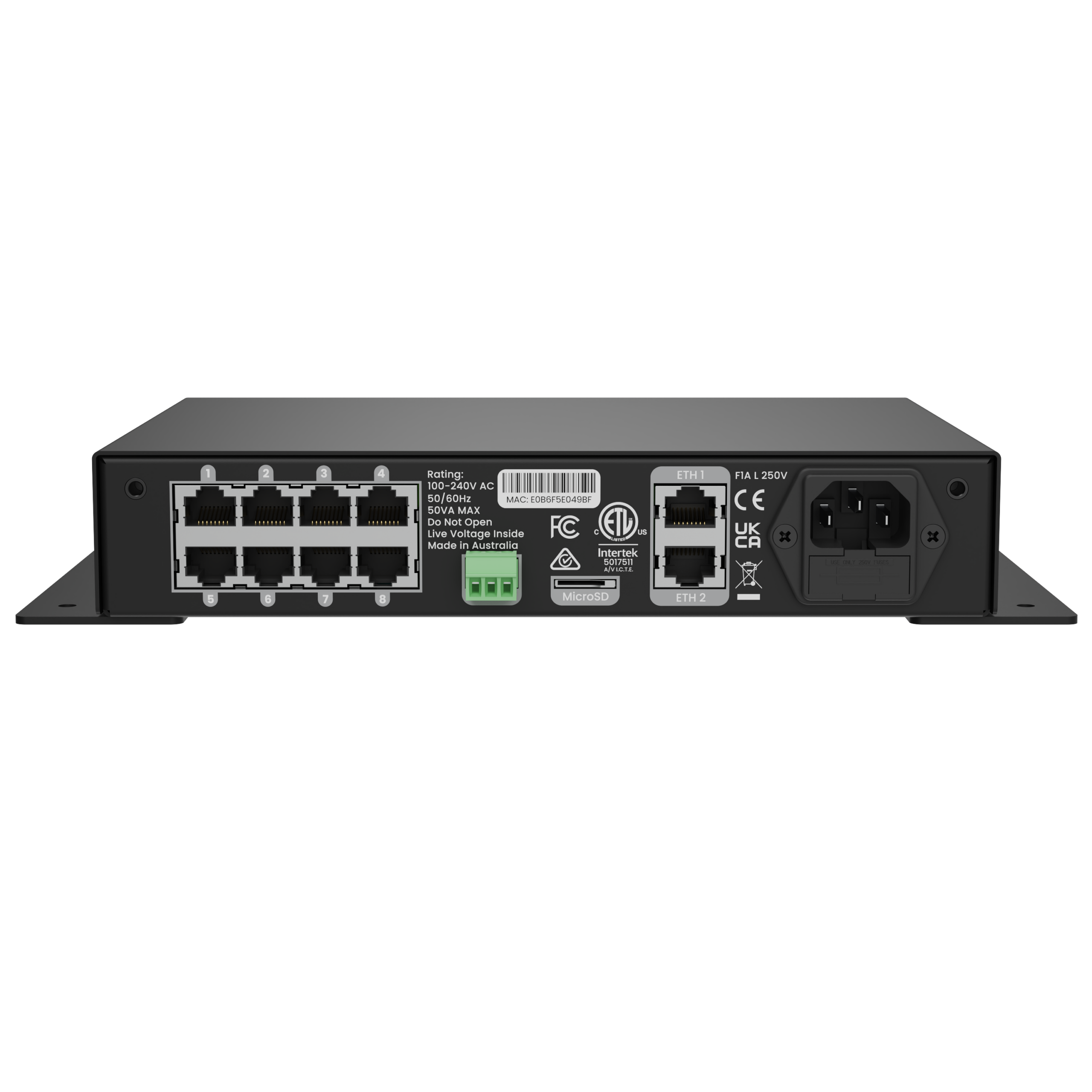

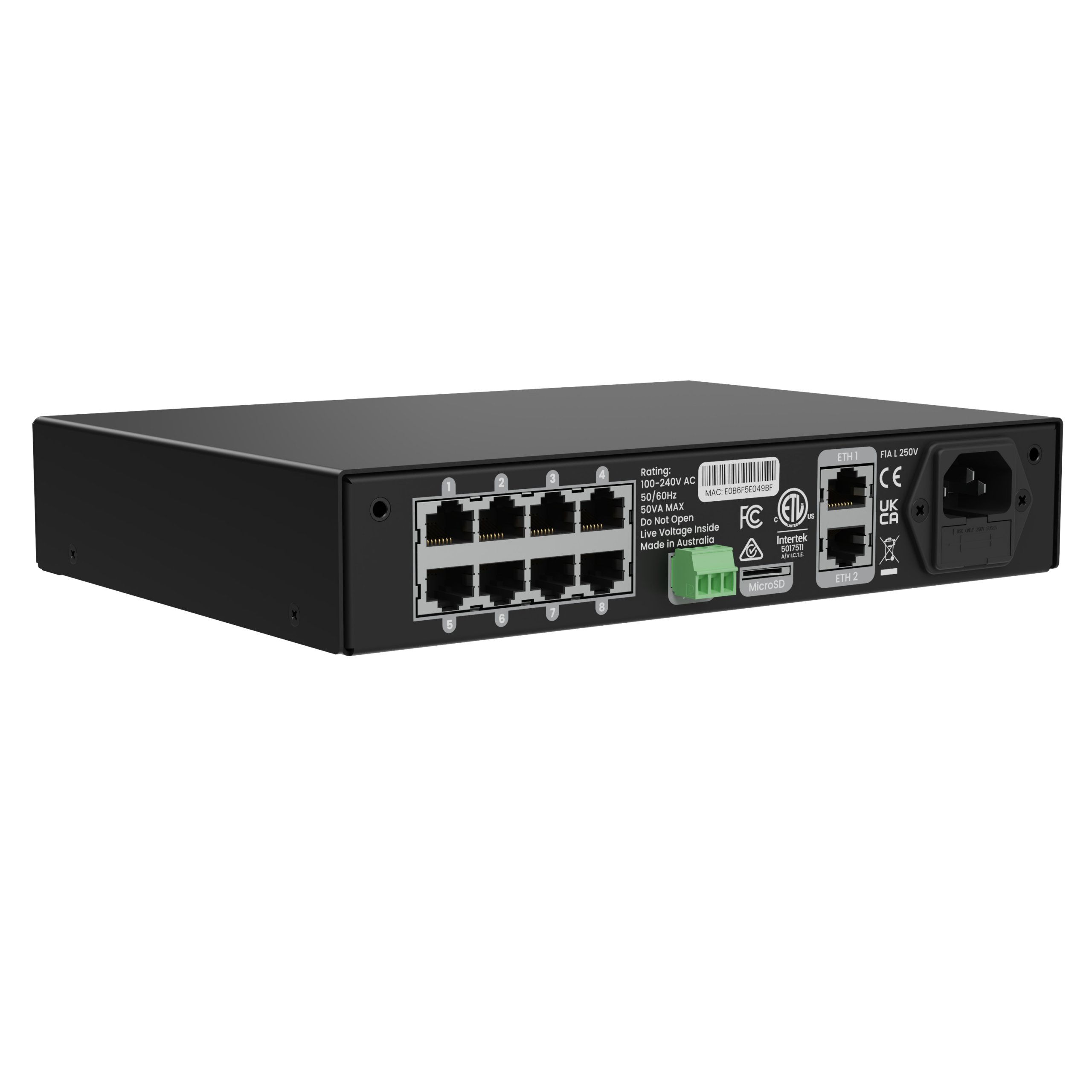

  • Ethernet Ports: 2 x 10/100/1000 Mbit/s

  • MicroSD Card Slot: 1

  • Auxiliary Port: 1 x RS485 Input/ Output

  • Data Outputs: 8 x RJ45

  • Dimensions: 169 x 221 x 42mm

  • Weight: 1.1Kg

  • Enclosure: Aluminium

  • Ambient Operating Temperature: -10°C to +60°C

  • Mounting Options: Direct Panel, Wall & Rack Mountable



Fault Protection

  • ESD: All ports protected
  • Auxiliary Port: +/-48V DC fault protection

  • Pixel Data Outputs: +/-36V DC fault protection

  •

Testing Standards

  • Audio/Video & ICTE – Safety Requirements: UL 62368-1

  • Radiated & Conducted Emissions: EN 55032 & FCC Part 15

  • Multimedia Immunity: EN 55035

  • Harmonic Current Emissions: EN 61000-3-2

  • Voltage Fluctuation & Flicker Emissions: EN 6100-3-3

  • Restriction of Hazardous Substances: RoHS 2 + DD (EU) 2015/863
