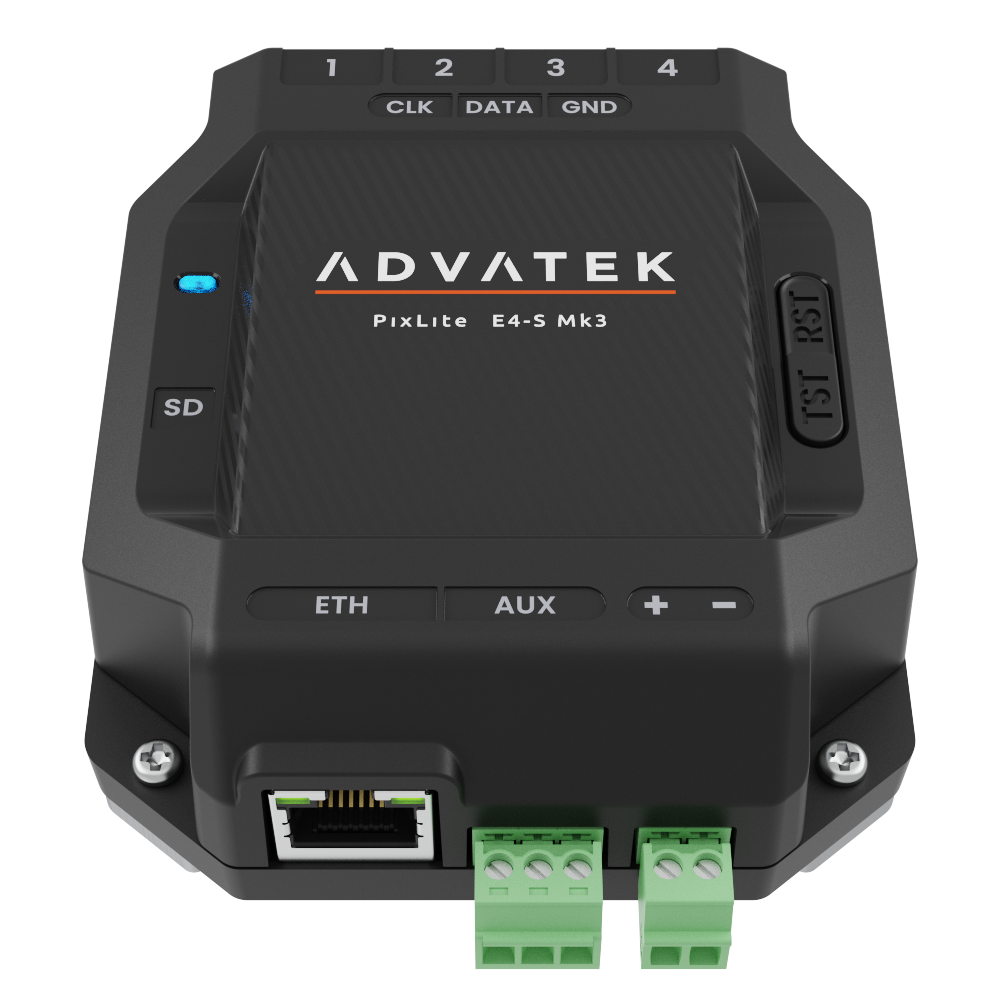

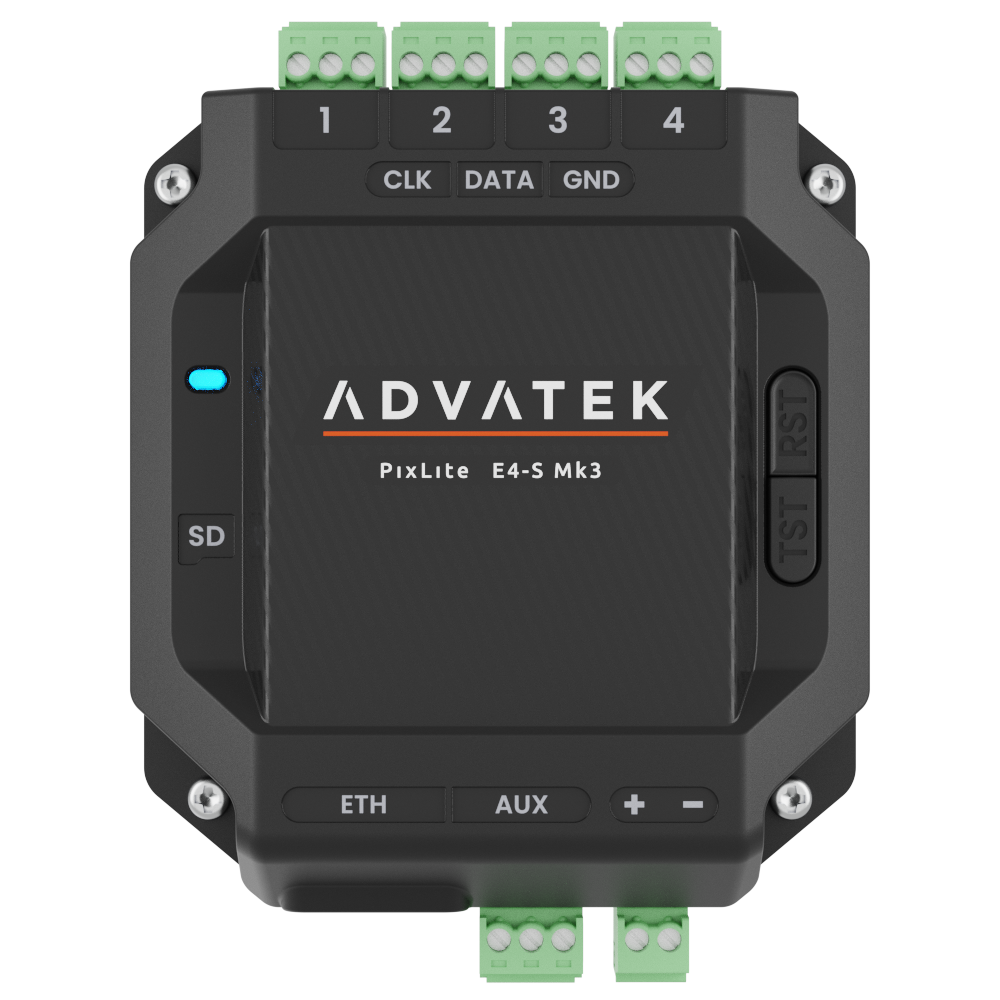

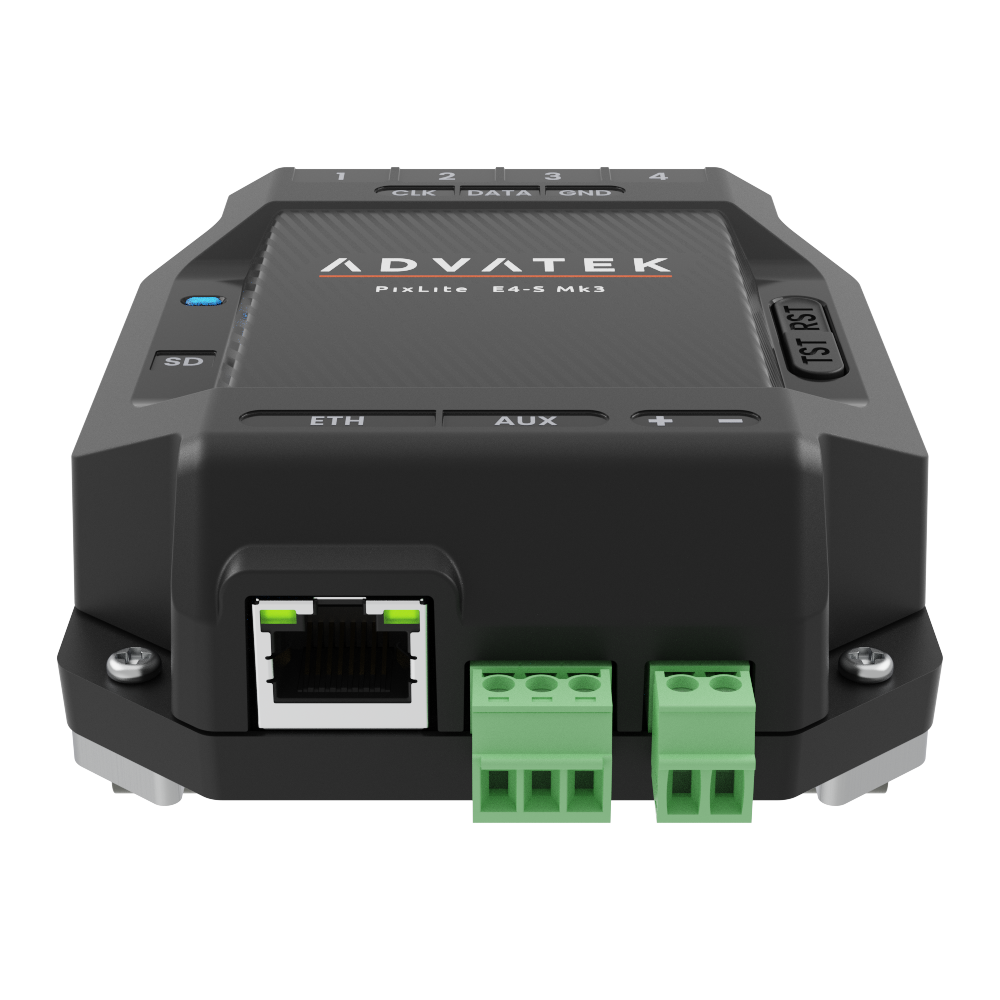

PixLite E4-S Mk3

The PixLite E4-S Mk3 is an economical, but powerful pixel LED controller built upon Advatek’s 3rd generation PixLite Mk3 processor.

The PixLite E4-S Mk3 drives up to 6 universes of data on each of its 4 outputs for a total of 24 universes of LED pixel control. This mighty, budget-friendly pixel controller is suitable for installations where pixel power is not routed through the pixel controller.

Key Features

  • 24 universes of Art-Net or sACN

  • 4 non-powered pixel outputs

  • Over 50+ pixel protocols supported

  • MicroSD card slot for Advatek SHOWTime™

  • Auxiliary port for DMX512 In/Out

  • Configure using Advatek Assistant 3 or any modern web browser

  • Electrical fault protection on all ports

  • Peace of mind with 5-year warranty and global certifications

Mounting Options

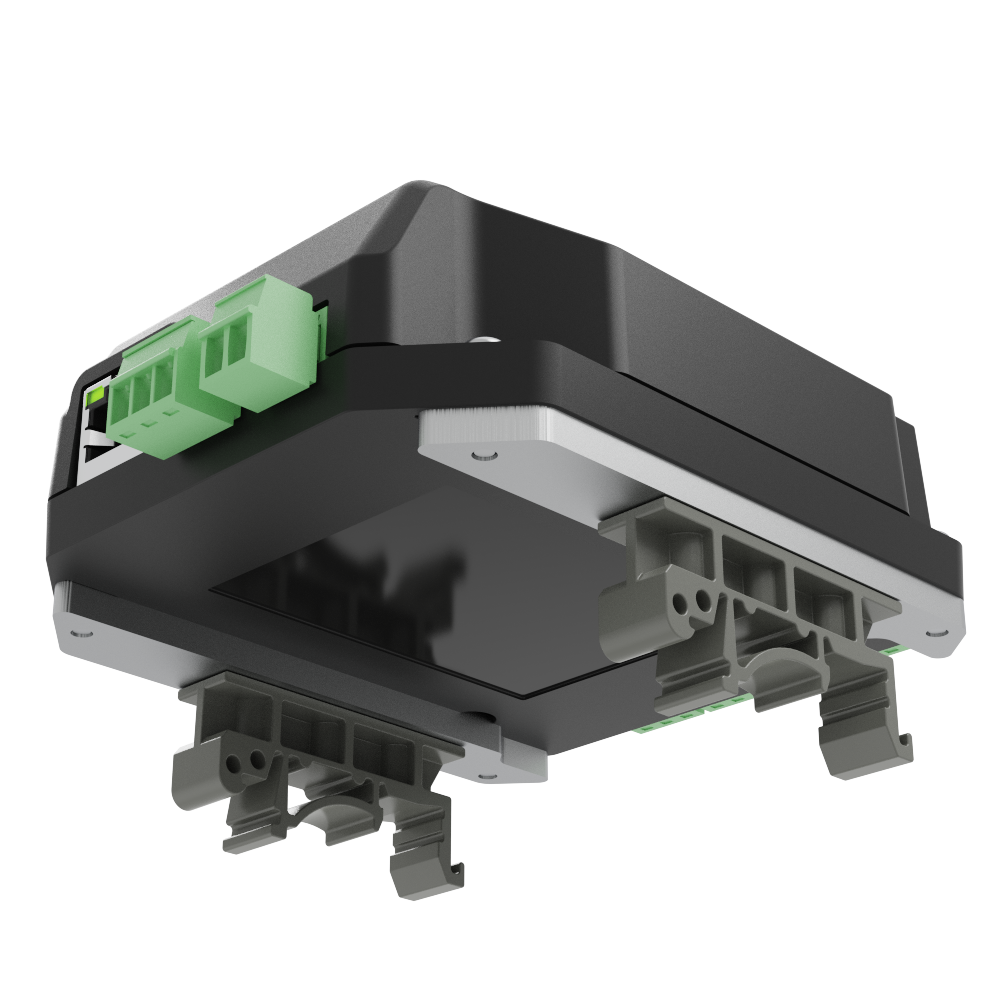

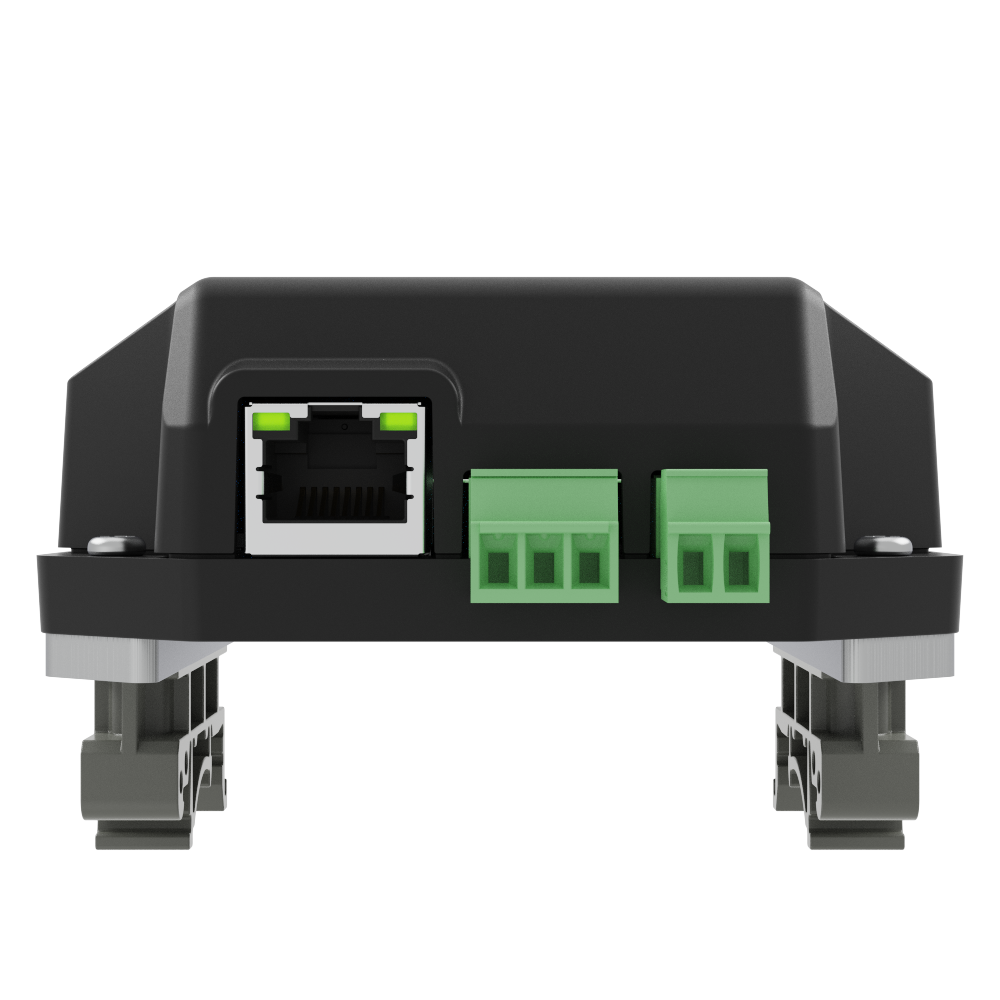

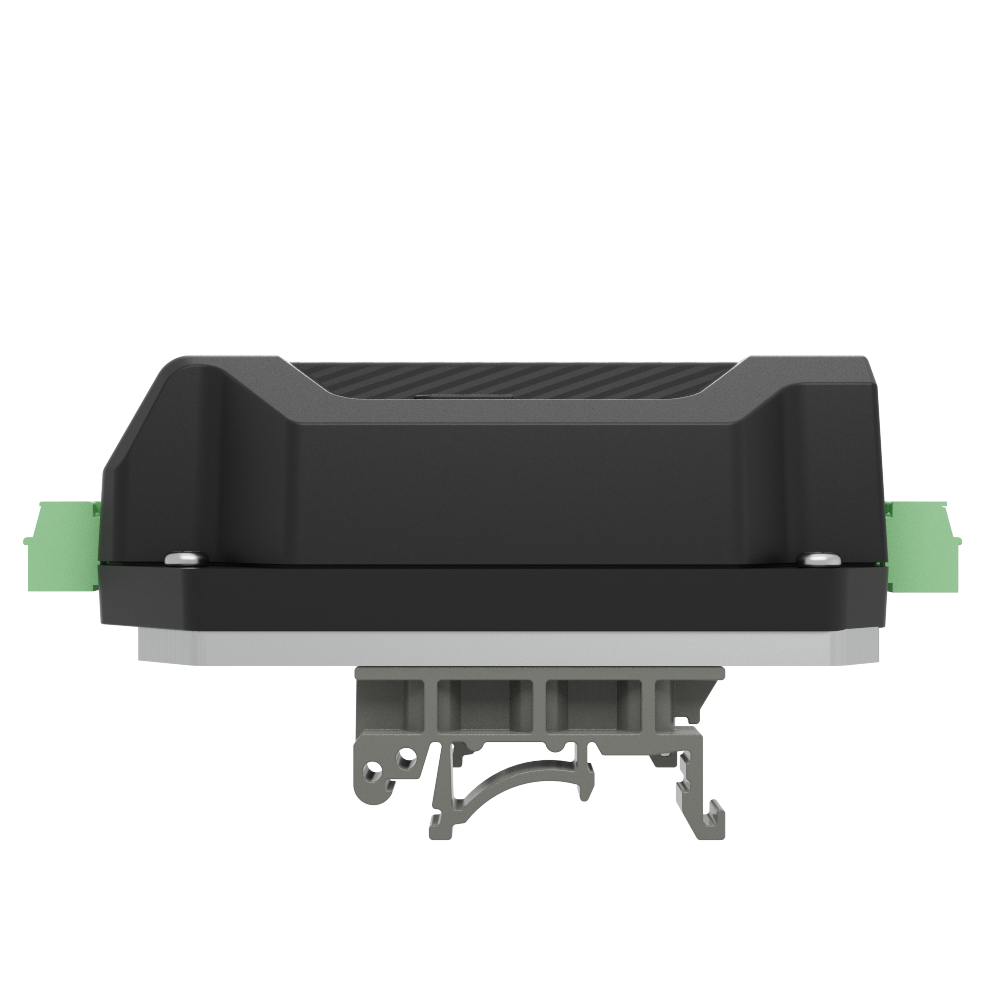

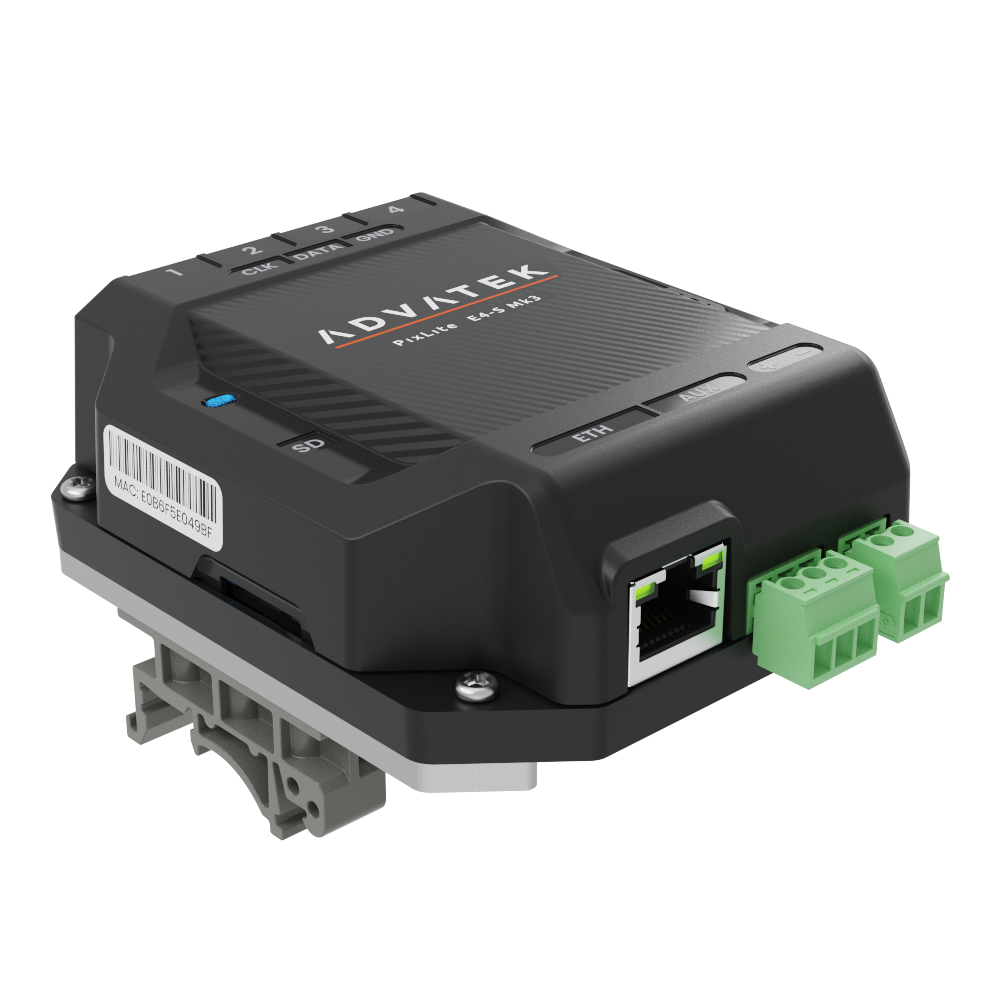

The PixLite E4-S Mk3 can be mounted directly to a surface using the 4 mounting holes located on the device, or via the Din-Rail mount kit accessory.

SPECIFICATIONS



Power

  • Input Voltage: 5V-24V DC

  • Maximum Power Consumption: 2.5W



Physical

  • Ethernet Ports: 1 x 10/100 Mbits/s

  • microSD Card Slot: 1

  • Auxiliary Port: 1 x RS485 Input/ Output

  • Pixel Outputs: 4 x Non-Powered

  • Dimensions: 115 x 86 x 33mm

  • Weight: 0.1Kg

  • Enclosure: ABS

  • Mounting: Wall & Din-Rail Mountable



Fault Protection

  • Electrostatic Discharge (ESD): All ports protected

  • Power Input: Reverse polarity protection

  • Auxiliary Port: +/- 48V DC fault protection

  • Pixel Output Clock/Data: +/- 36V fault protection

  • Pixel Output Power: Self-resetting over current and short circuit protection

Thermal

  • Ambient Operation Temperature: -20°C to + 70°C

Testing Standards

  • Audio/Video & ICTE – Safety Requirements: UL 62368-1

  • Radiated & Conducted Emissions: EN 55031 & FCC Part 15

  • Multimedia Immunity: EN 55035

  • Restriction of Hazardous Substances: RoHS 2 + DD (EU) 2015/863
