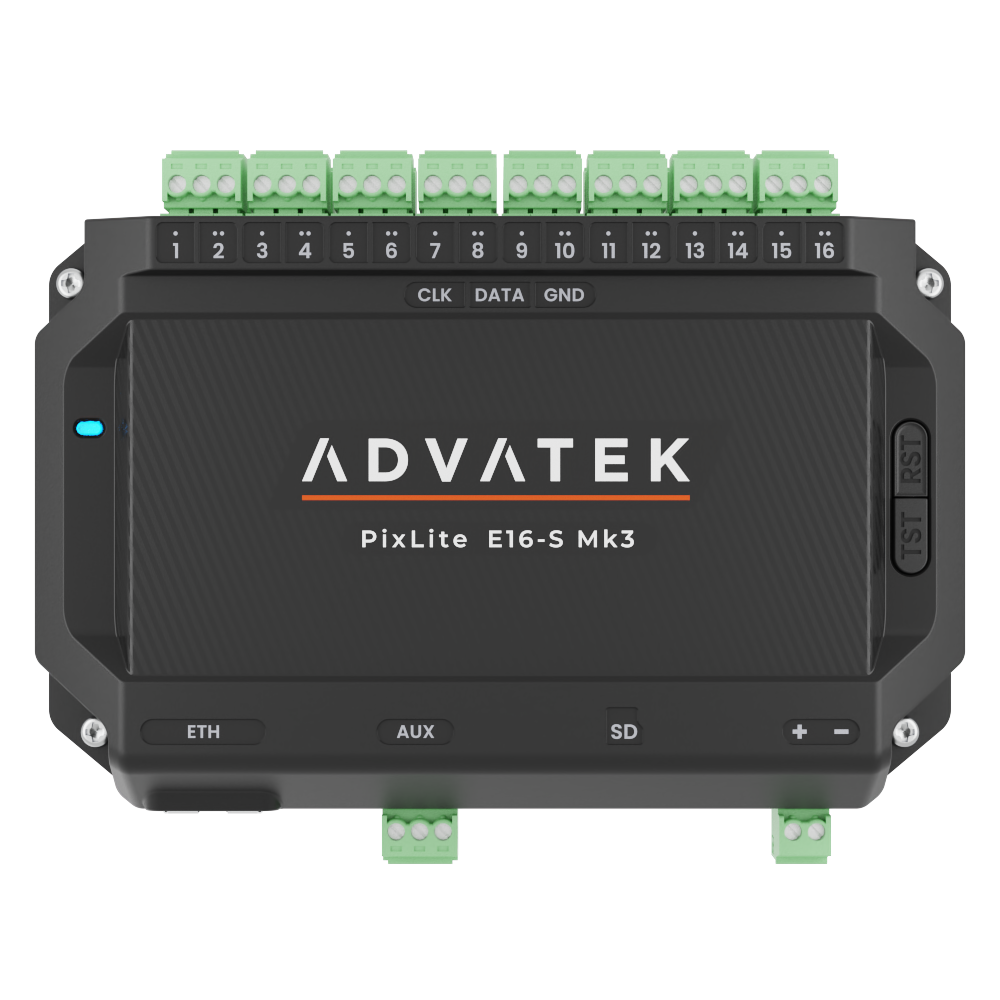

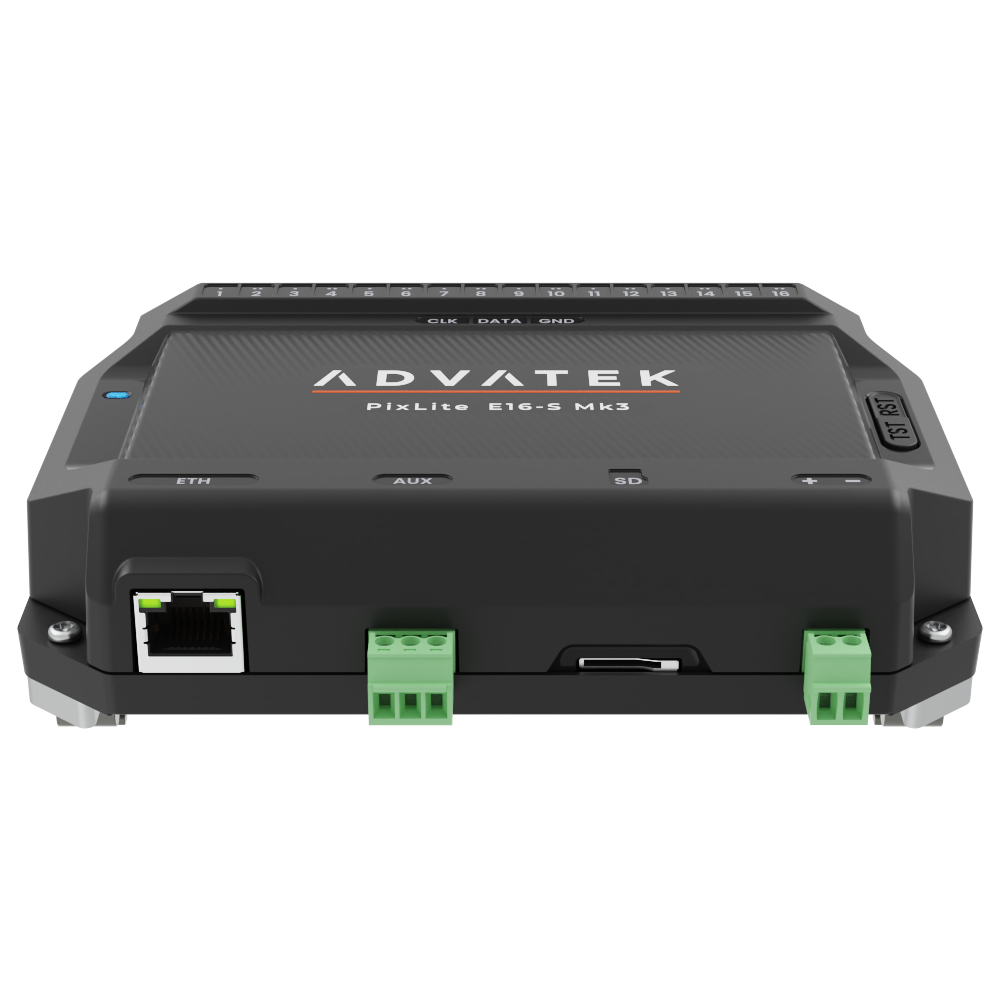

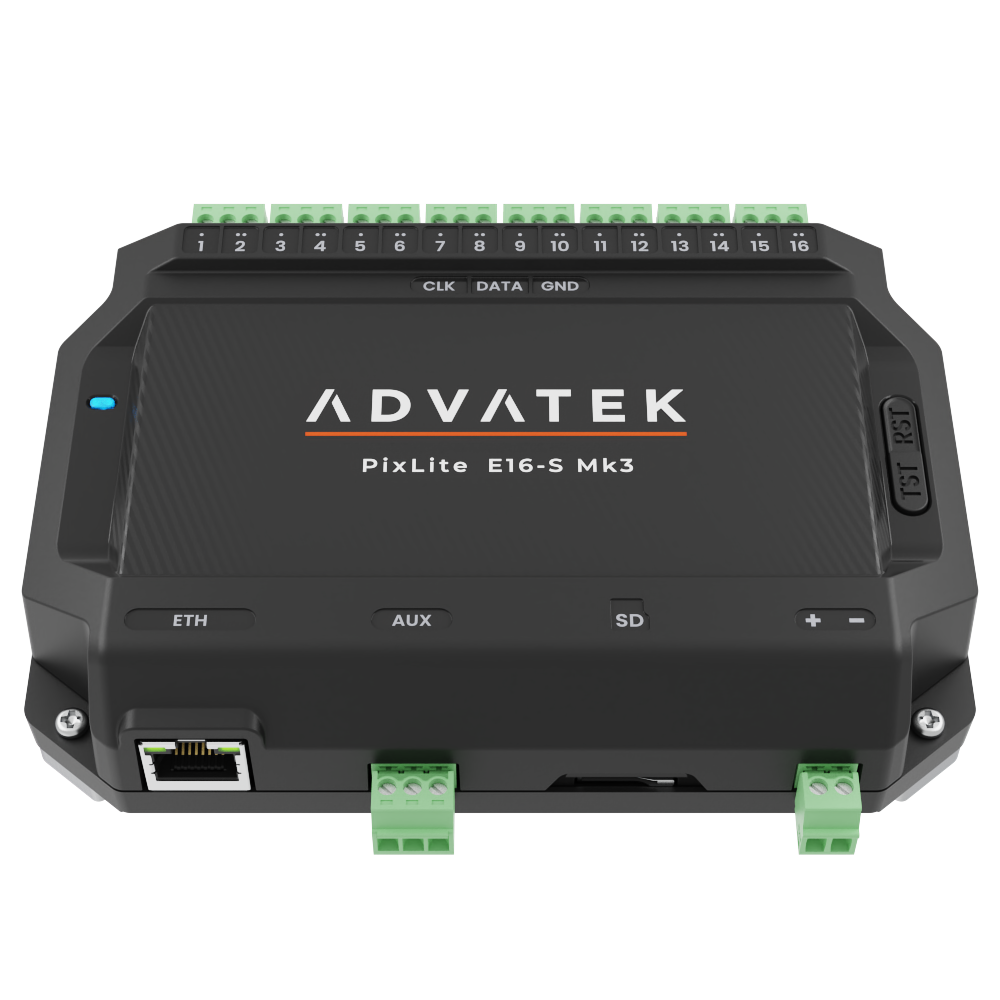

PixLite E16-S Mk3
The PixLite E16-S Mk3 is an economical, but powerful pixel LED controller built upon Advatek’s 3rd generation PixLite Mk3 processor.
The PixLite E16-S Mk3 drives up to 6 universes of data on each of its 16 outputs for a total of 96 universes of LED pixel control. This mighty, budget-friendly pixel controller is suitable for installations where pixel power is not routed through the pixel controller.
Key Features
-
96 universes of Art-Net or sACN
-
16 non-powered pixel outputs
-
Over 50+ pixel protocols supported
-
MicroSD card slot for Advatek SHOWTime™
-
Auxiliary port for DMX512 In/Out
-
Configure using Advatek Assistant 3 or any modern web browser
-
Electrical fault protection on all ports
-
Peace of mind with 5-year warranty and global certifications
Mounting Options

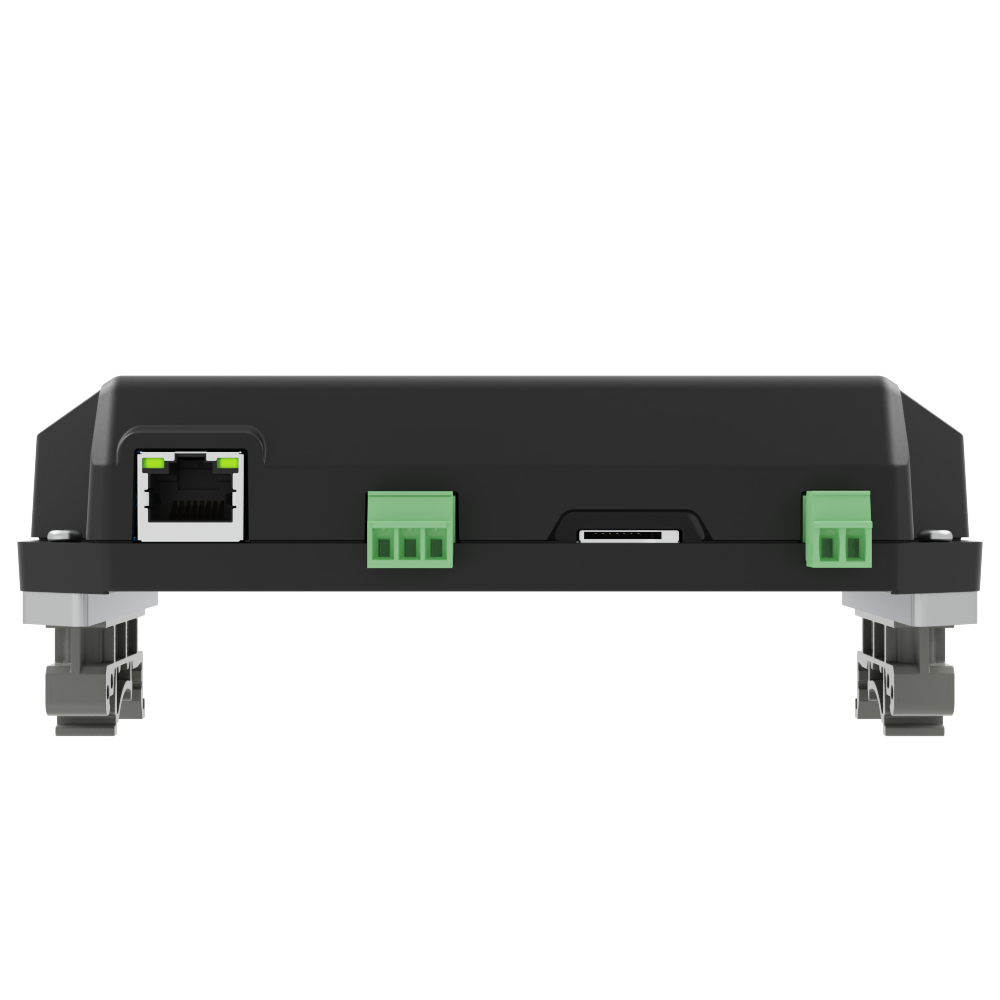

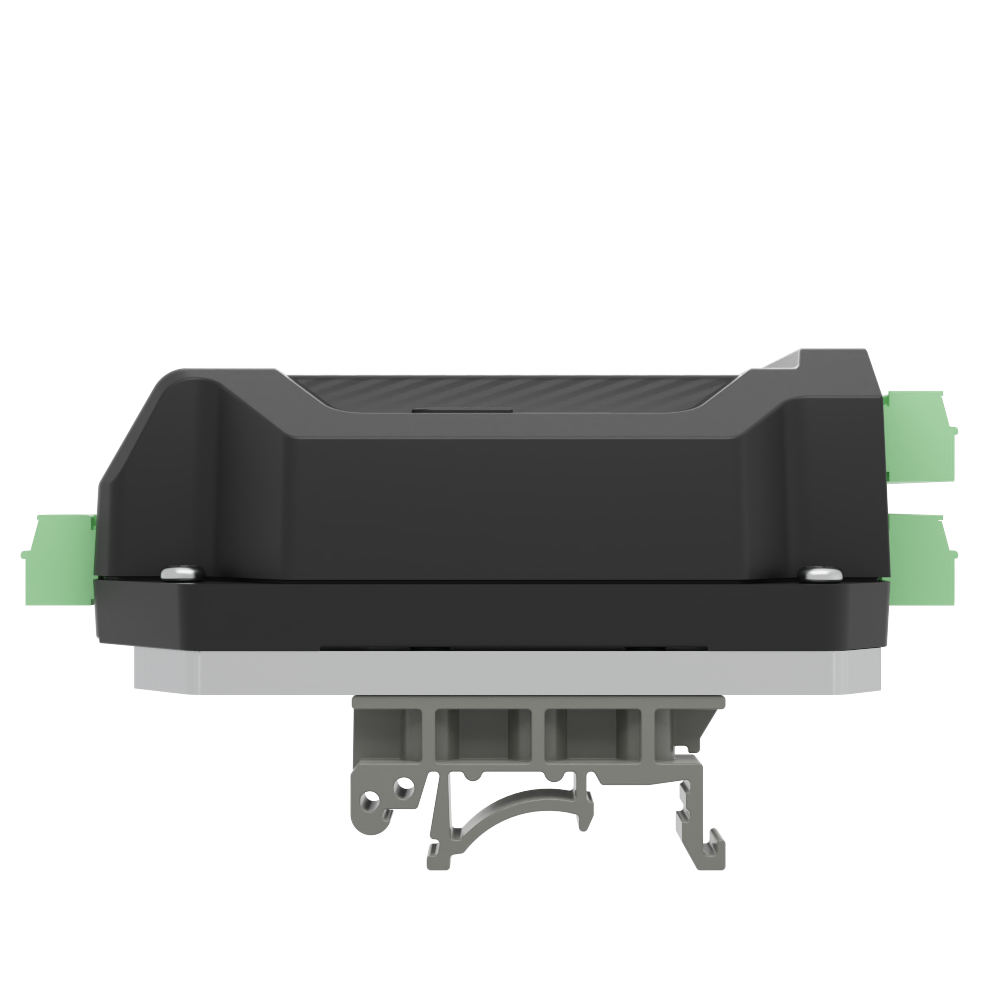

The PixLite E4-S Mk3 can be mounted directly to a surface using the 4 mounting holes located on the device, or via the Din-Rail mount kit accessory.
SPECIFICATIONS
Power
-
Input Voltage: 5V-24V DC
-
Maximum Power Consumption: 3.5W
Physical
-
Ethernet Ports: 1 x 10/100 Mbits/s
-
microSD Card Slot: 1
-
Auxiliary Port: 1 x RS485 Input/ Output
-
Pixel Outputs: 16 x Non-Powered
-
Dimensions: 114.5 x 149.5 x 35.5mm
-
Weight: 0.2Kg
-
Enclosure: ABS
-
Mounting: Wall & Din-Rail Mountable
Fault Protection
-
Electrostatic Discharge (ESD): All ports protected
-
Power Input: Reverse polarity protection
-
Auxiliary Port: +/- 48V DC fault protection
-
Pixel Output Clock/Data: +/- 36V fault protection
Thermal
-
Ambient Operation Temperature: -20°C to + 70°C
Testing Standards
-
Audio/Video & ICTE – Safety Requirements: UL 62368-1
-
Radiated & Conducted Emissions: EN 55031 & FCC Part 15
-
Multimedia Immunity: EN 55035
-
Restriction of Hazardous Substances: RoHS 2 + DD (EU) 2015/863
