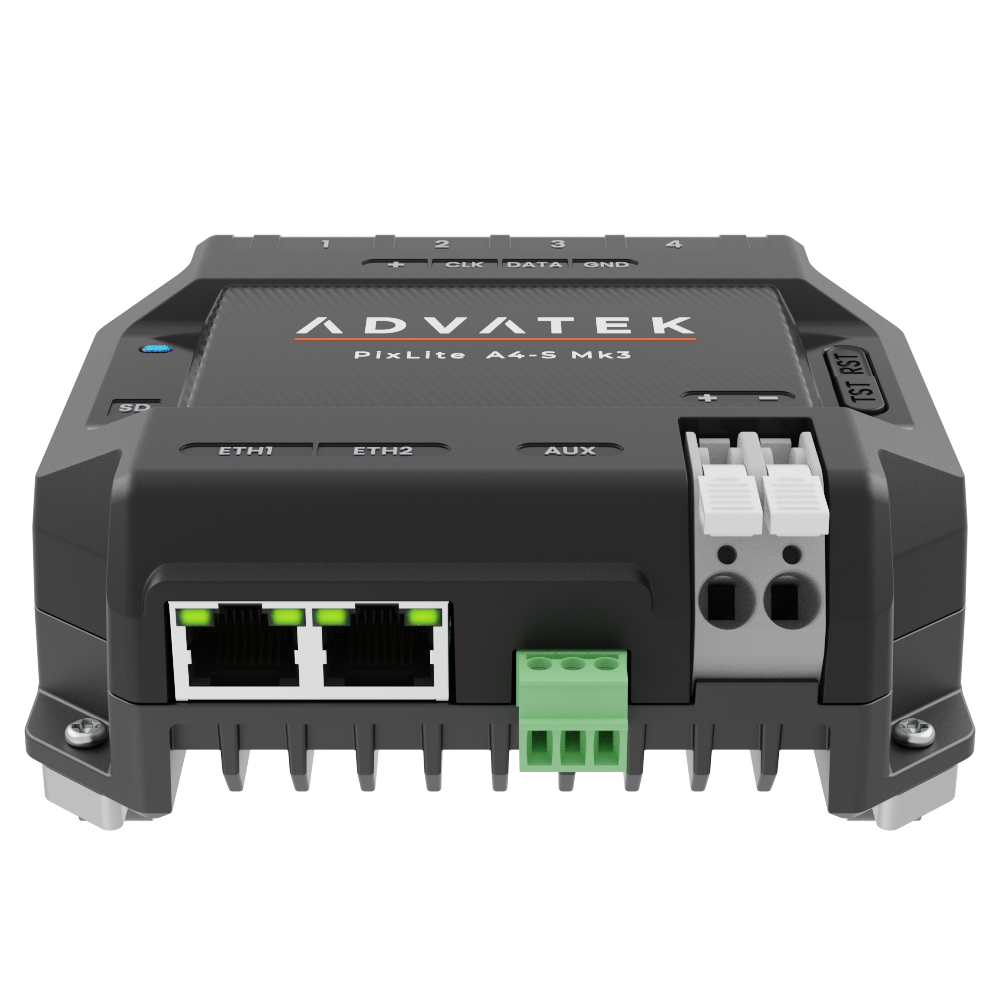

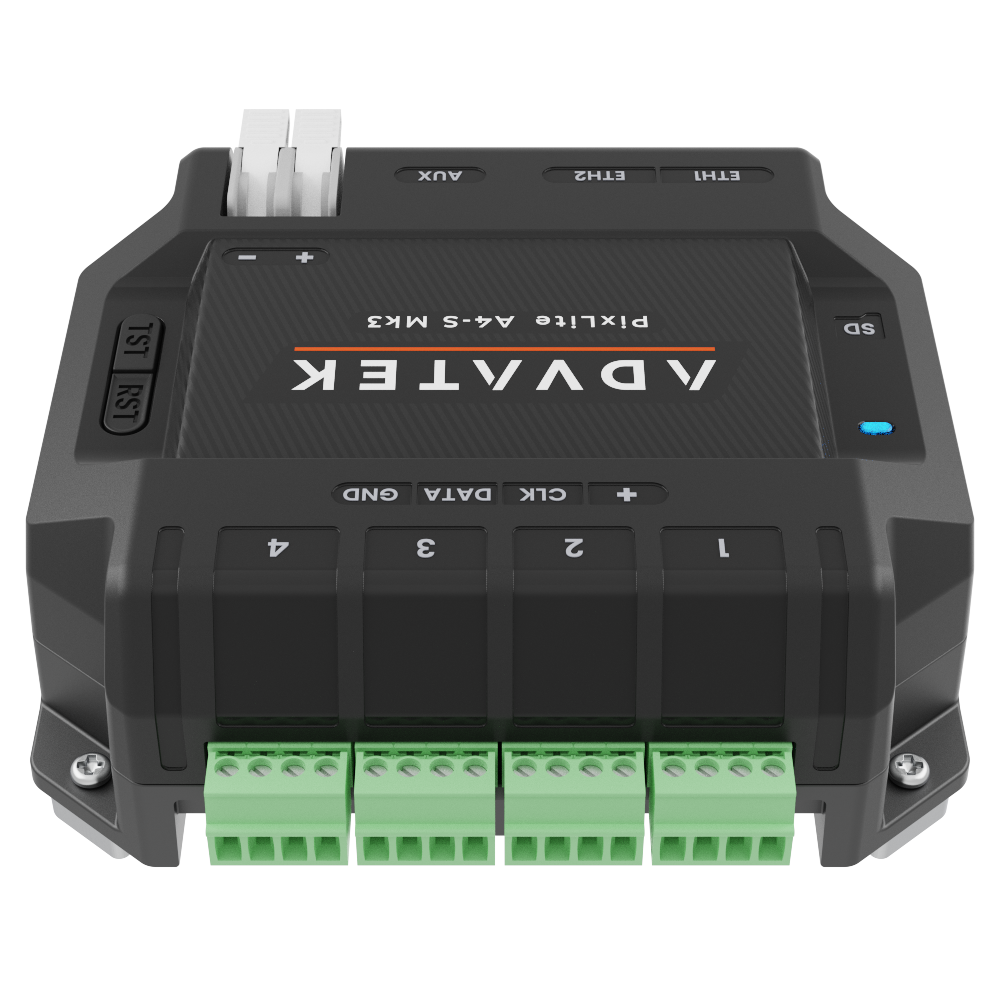

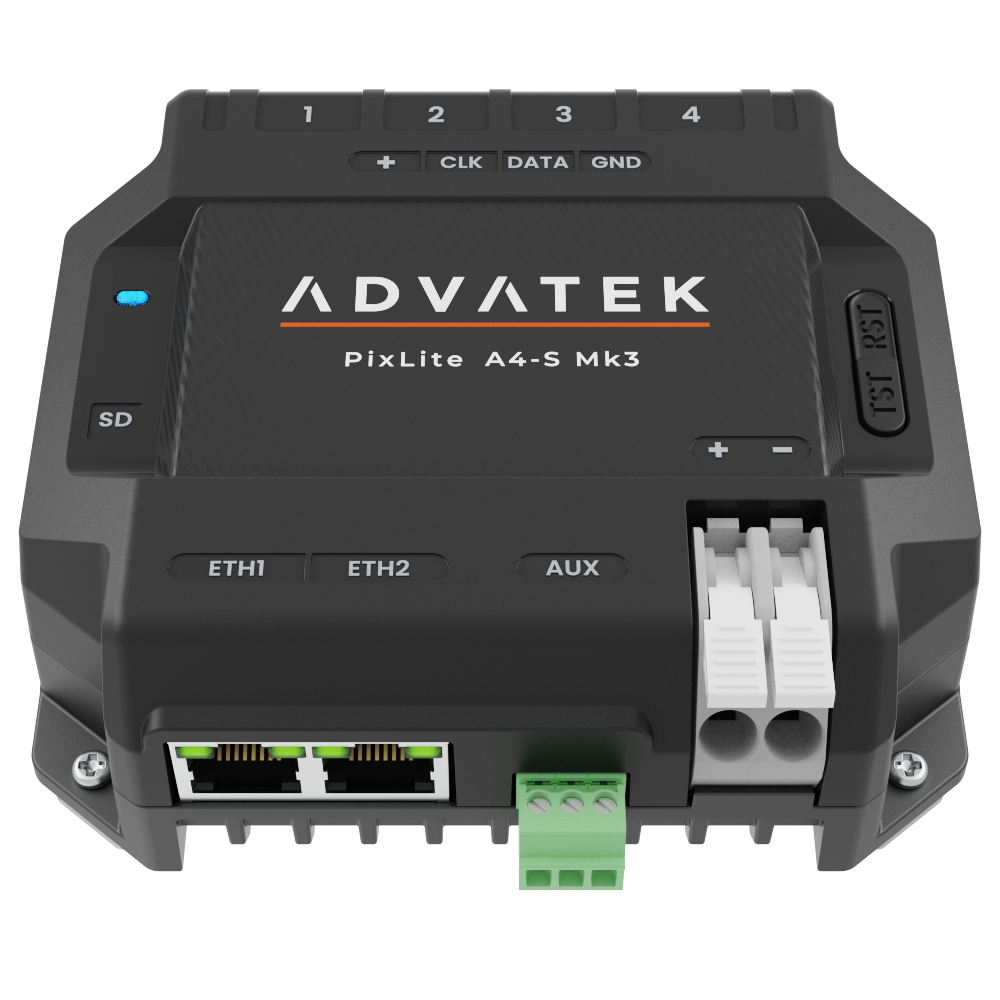

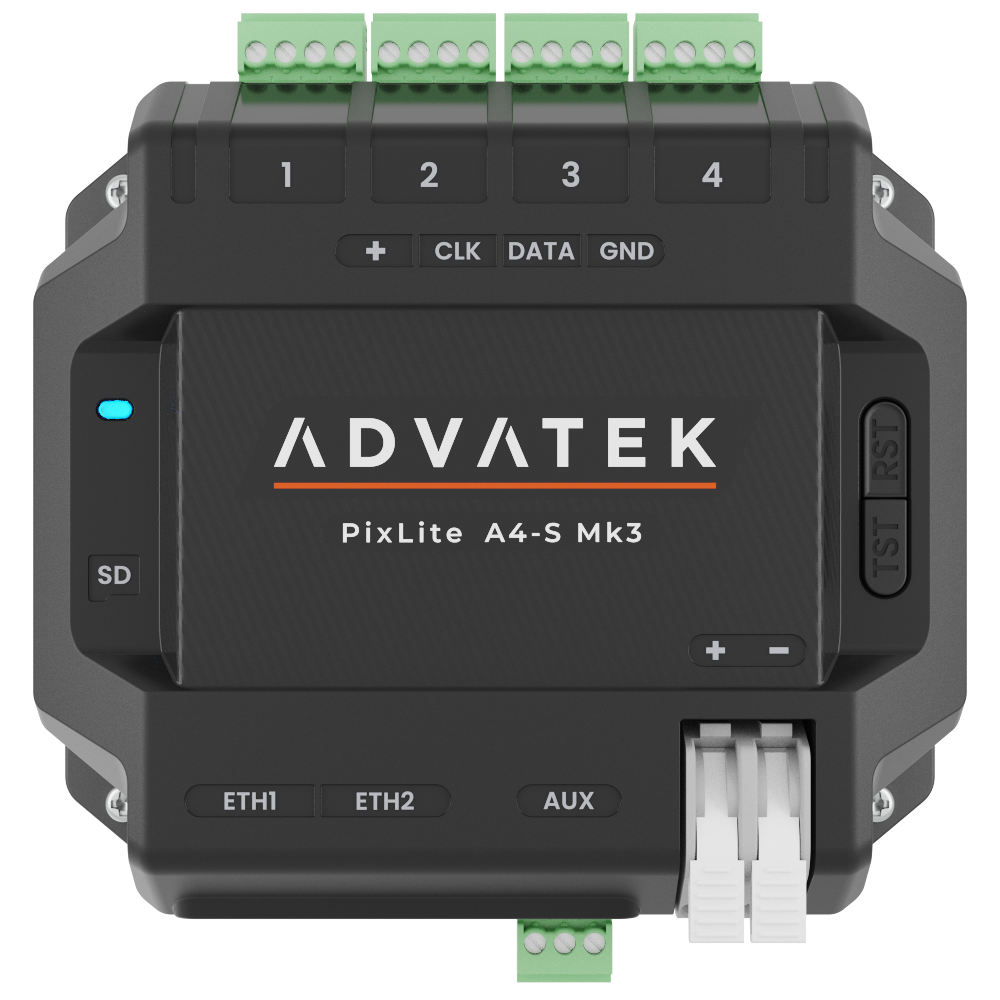

PixLite A4-S Mk3

Powerful operational functionality and advanced management platforms drive up to 6 universes of data - or up to 1020 RGB powered pixels – on each of its 4 outputs. Truly a class leader, these features provide incredible, scalable value for your lighting project. Put simply, compared to similar products in its class – you need fewer Advatek controllers to control the same number of pixels, producing a low cost per pixel output, an unrivaled cost per universe, and the highest value per controllable pixel. With a sleek, compact design, easy mounting options and electrical fault protection on all inputs and outputs, it’s ideally suited to commercial and industrial applications. With high output capacity, comprehensive feature set, intuitive management software and product warranty, the PixLite A4-S Mk3 is the best choice for your pixel lighting application.

Key Features

  • 4 powered pixel outputs

  • Over 50+ pixel protocols supported

  • MicroSD card slot for Advatek SHOWTime™

  • Auxiliary port for DMX512 In/Out

  • Configure using Advatek Assistant 3 or any modern web browser

  • Electrical fault protection on all ports

  • Peace of mind with 5-year warranty and global certifications

Mounting Options

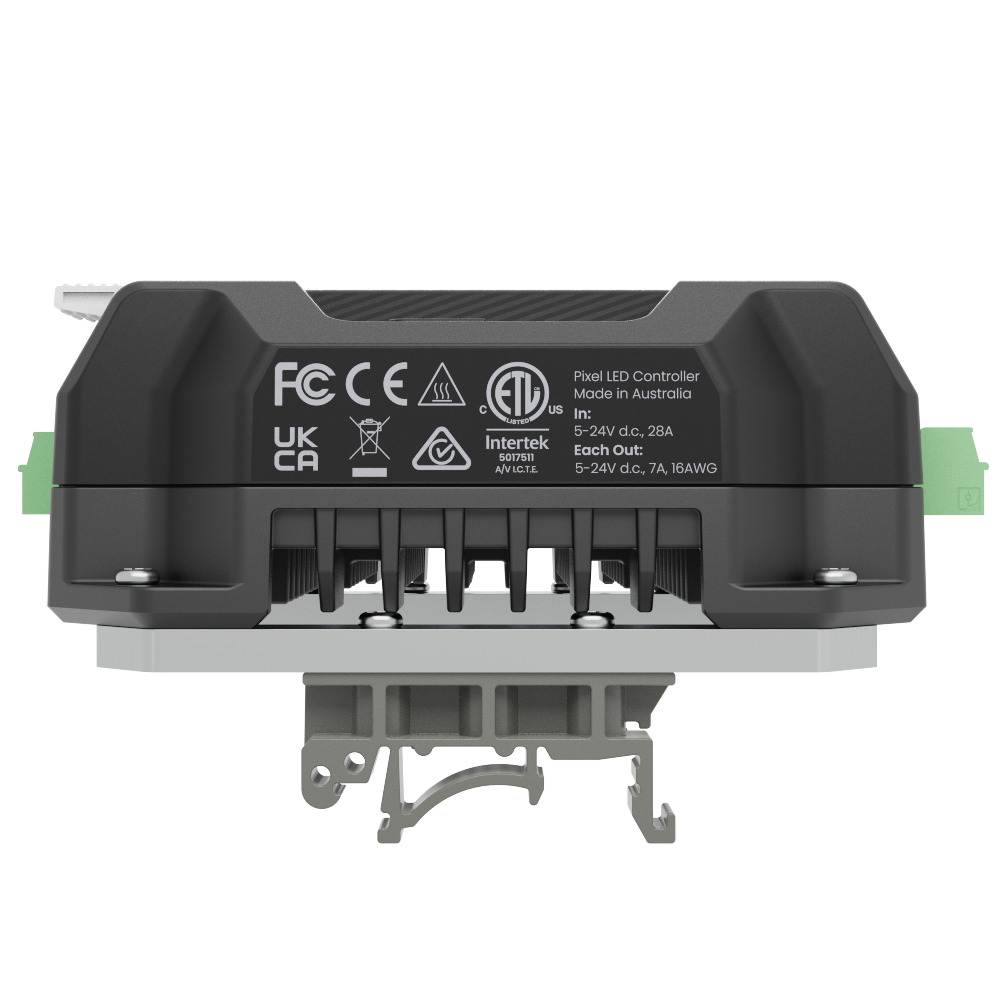

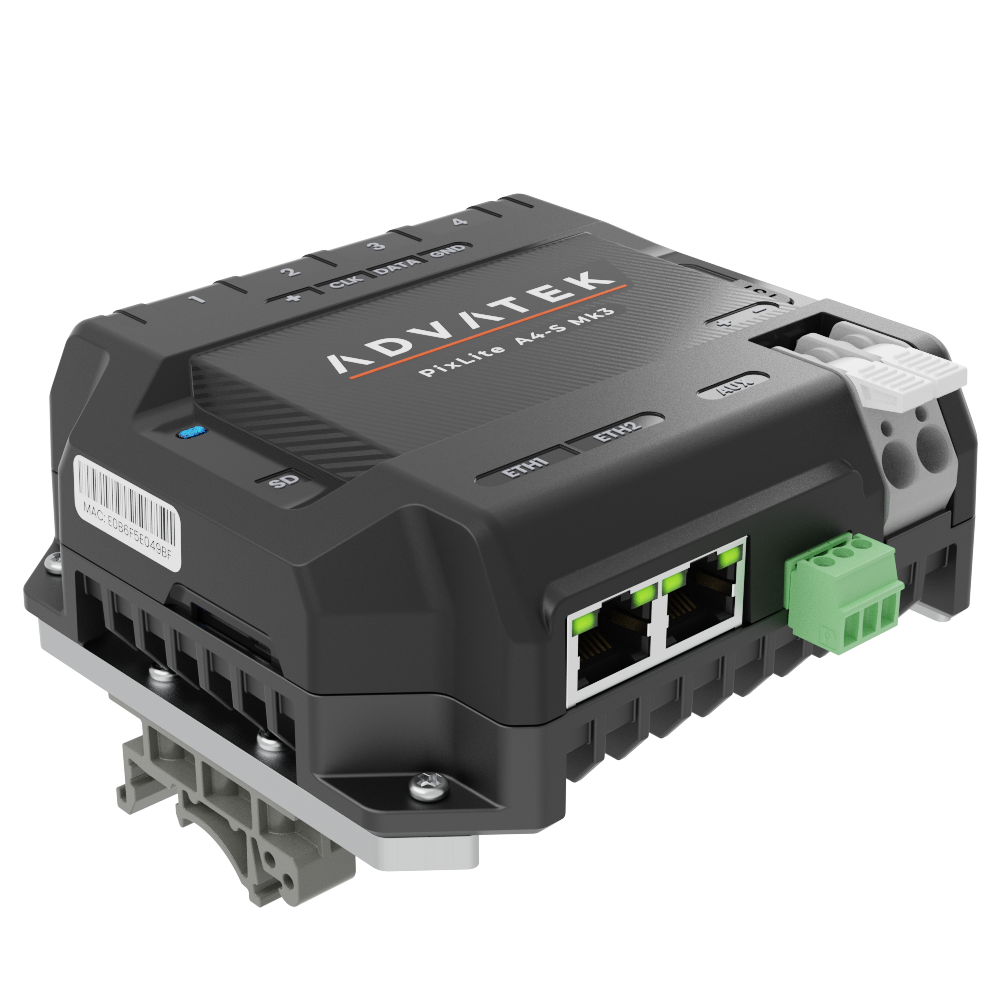

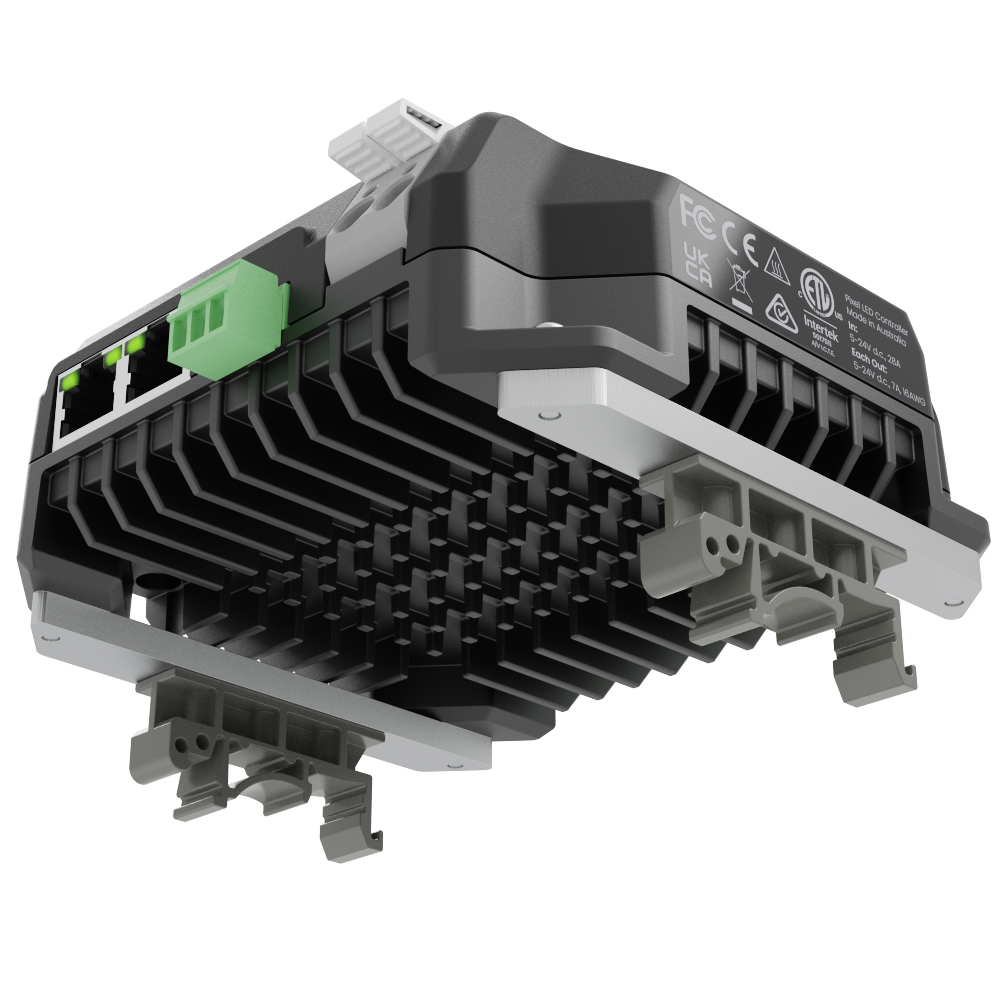

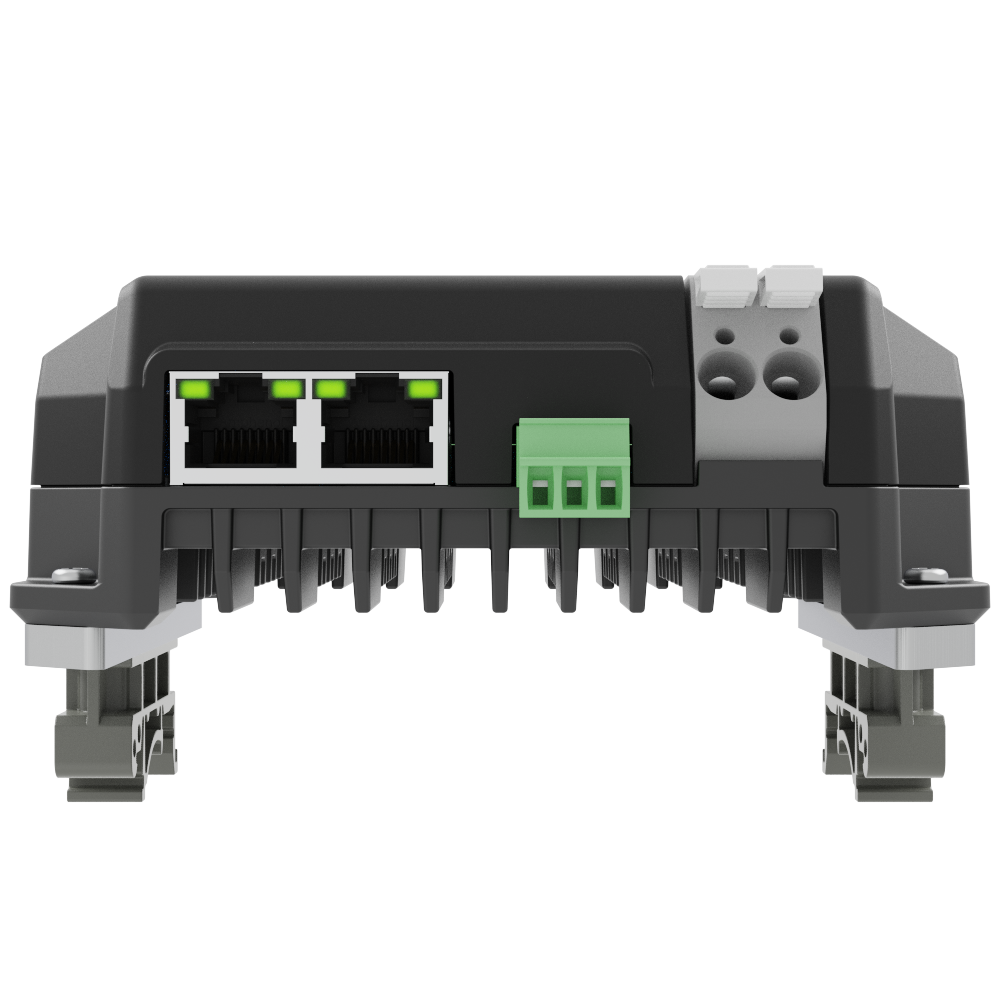

The PixLite A4-S Mk3 can be mounted directly to a surface using the 4 mounting holes located on the device, or via the Din-Rail mount kit accessory.

SPECIFICATIONS



Power

  • Recommended Input Voltage: 5V-24V DC

  • Per Output Current Limit: 7A

  • Total Current Limit: 28A



Physical

  • Ethernet Ports: 2 x 10/100/1000 Mbits/s

  • microSD Card Slot: 1

  • Auxiliary Port: 1 x RS485 Input/ Output

  • Pixel Outputs: 4 x Powered

  • Dimensions: 126.5 x 119 x 42mm

  • Weight: 0.3Kg

  • Enclosure: Aluminium + ABS

  • Mounting: Wall & Din-Rail Mountable



Fault Protection

  • Electrostatic Discharge (ESD): All ports protected

  • Power Input: Reverse polarity protection

  • Auxiliary Port: +/- 48V DC fault protection

  • Pixel Output Clock/Data: +/- 36V fault protection

  • Pixel Output Power: Self-resetting over current and short circuit protection

Thermal

  • Ambient Operation Temperature: -20°C to + 70°C

  • Derating Temperature: 60°C

Testing Standards

  • Audio/Video & ICTE – Safety Requirements: UL 62368-1

  • Radiated & Conducted Emissions: EN 55031 & FCC Part 15

  • Multimedia Immunity: EN 55035

  • Restriction of Hazardous Substances: RoHS 2 + DD (EU) 2015/863
